COLUMN 03 Geometric condition of illumination and light reception for transparent object (from ISO7724)

As the geometric condition of illumination and light reception for transparent object, JIS Z8722 standard recommends the following 4 cases.

[Figure. 5] Geometric condition of illumination and light reception for transparent object (e)

[Figure. 5] Geometric condition of illumination and light reception for transparent object (e)

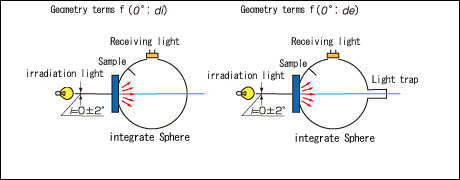

[Figure. 6] Geometric condition of illumination and light reception for transparent object (f)

[Figure. 6] Geometric condition of illumination and light reception for transparent object (f)

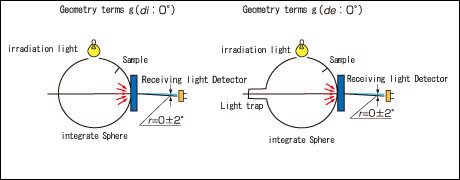

[Figure. 7] Geometric condition of illumination and light reception for transparent object (g)

[Figure. 7] Geometric condition of illumination and light reception for transparent object (g)

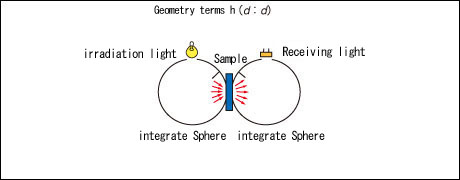

[Figure. 8] Geometric condition of illumination and light reception for transparent object (h)

[Figure. 8] Geometric condition of illumination and light reception for transparent object (h)
