光沢計・反射率計

Direct Measuring Mirror Reflectometer

MG-I 7000

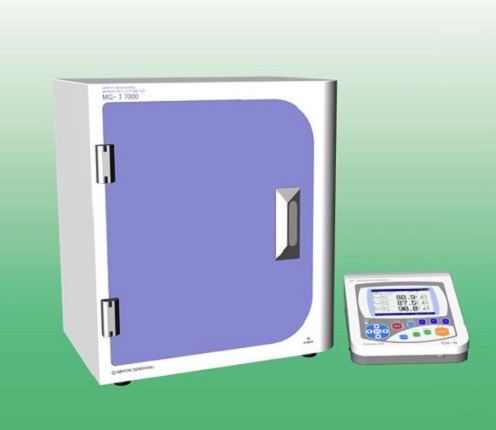

MG-I 7000 is a mirror reflectometer of direct measuring method that is based on the “Reflectance direct measuring method” for “Automotive mirrors (ISO 5740)”. It allows reflectance measurement for a sample with specular surface. Just by putting a sample into a sample chamber and pressing a button on the operation panel, measured data appears on the display with such very easy operation. This model will be a most suitable instrument to evaluate the samples with surfaces processed as plated and polished, in addition to plane mirrors and prismatic mirrors (inside mirrors), etc.

Features

This is a reflectometer based on the “Reflection direct measuring method for automotive mirrors”.

It can measure reflectance of surface-processed samples such as by mirrored, plated and polished.

Operation is very easy as just by putting a sample into a sample chamber and pressing a button.

Thanks to its wide sample chamber in the optical unit, a large sample is also measurable.

As a light source, you can select a halogen lamp or white LED (option).
