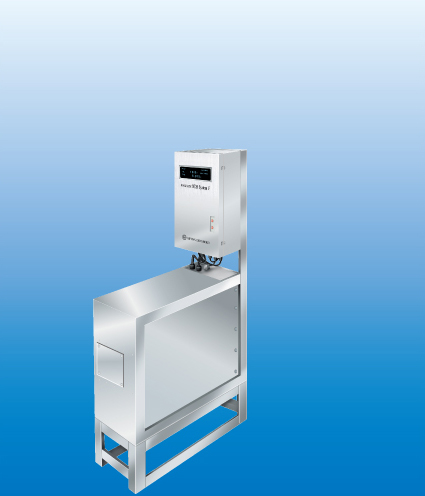

NDR System V is a process type drainage analyzer that is used to continuously monitor coloration and contaminated color of drainage according to the regulations of local governments. It allows to simultaneously measure coloration, turbidity, contaminated color and chromaticity coordinate of wastewater, and give an alarm when measured values exceed the set reference value levels for control. This model is equipped with 2 light path compensation circuit and electronic dehumidification function, so stable measurement is possible even for long hours of continuous operation. This model will be a most suitable instrument to control industrial wastewater or domestic wastewater for river environment and to establish ISO environmental management system.

Features

This is a process type analyzer to measure coloration and contaminated color of wastewater, which enables continuous monitoring of drainage based on the regulations of local governments.

Using this one unit, you can measure coloration, turbidity, contaminated color, chromaticity coordinate, etc. of factory and domestic wastewater.

Using the equipped function to set reference value levels for control, an alarm is given against measured values exceeding the upper limit.

Thanks to the built-in electronic dehumidification function, NDR System V can be even installed under relatively high humid environment with possible condensation.

Stable and high-precision measurement is possible even for long hours of continuous operation thanks to the adopted 2 light path compensation circuit.

This model has such output terminals as RS-233C and analog relay contact as standard configuration.
