High-sensitivity Turbidimeter/Particle Counter

NP 7700T

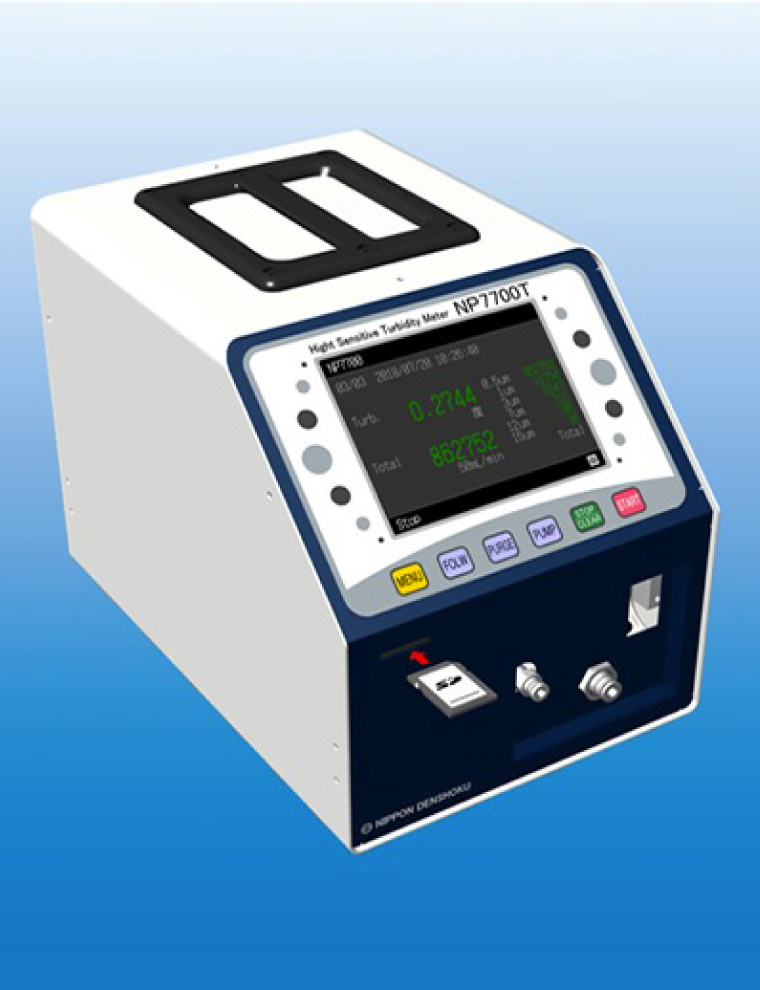

NP 7700T is a highly sensitive turbidity meter/particle counter enabling to simultaneously measure turbidity and particle numbers in liquid samples. A pump is built in the main unit, so samples can be easily sucked from beakers and measured. This model will be an optimum choice for such purposes of use as the protection from cryptosporidium, very low turbidity measurement, control of filter basin with turbidity of 0.1NTU or less, etc.

Features

This model allows simultaneous measurements of very low turbidity and particle numbers for membrane treatment water and filtrate water.

Particle counting is possible for 6 channels of 0.5 to 1μm, 1 to 3μm, 3 to 7μm, 7 to 12μm, 12 to 15μm and 15μm or more, in consideration of particle sizes of cryptosporidium, giardia and so on

NP 7700T has electronic dehumidification function, monitor for contamination of detector, monitor for output of laser beam source, small pump, etc.

Degassing tank and compression degasser by pump will be also available (in option).

It is possible to automatically save all the data, such as measured time, particle numbers for every particle size, total particle numbers, turbidity, etc., into the folders of every measurement date and time. Trend curve, daily report, weekly report and monthly report, etc. are also available when using the exclusive data transfer software annexed to this model. Printer is also available.

Continuous operation will be also available by attaching 4-20mA DC analog signal output or relay contact output, etc. (option).
