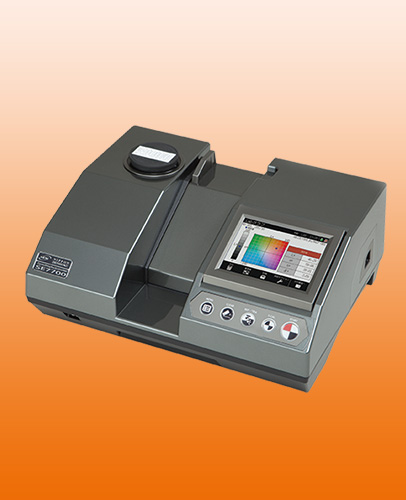

SE 7700 is a high-precision spectrophotometric type color difference meter that enables to measure color of samples by reflectance and transmittance methods in the wavelength range of 380nm to 780nm at 5nm intervals. Using this one color difference meter, measurements by both of reflectance and transmittance methods are possible, and various types of attachments are available for use depending on such different shapes of samples as solid, liquid, powder, pellet and film. This model is an all-in-one type instrument with easy operation and will be an optimum choice for color management of foods, painting, ink, resin, chemical products, pharmaceuticals, cement, etc.

Features

Spectral reflectance and transmittance can be measured in the wavelength range of 380nm to 780nm at 5nm intervals.

Both of reflectance and transmittance measurement are possible by this one unit. Using this model, you can make color measurements of various shaped samples like solid, liquid, powder, pellet and film.

Hazen color number (APHA) and Gardner color number can be measured (in option).

Using color management software (option), analysis by measurement data and various color graphs is possible on the display of your personal computer.

Large5.7”Color LCD has been adopted. You can enjoy easily viewable various graph and measuring value.

You can connect a USB memory stick to the measuring unit, by which measurement data and conditions (CSV files) can be saved to or read in.

SE 7700+OF is the model with an optical fiber measuring head upgraded from SE 7700. Keeping the powerful measuring capability of SE 7700 as it is, an optical fiber with a pen type measuring head has been added to its optical unit. Using this model, it is possible to measure skin color, samples with surface roughness, precision parts, dental material, material of plant origin, etc., which are usually difficult to be measured due to its complicated shape or large size. This optical fiber can be detached from the optical unit, so measurement using SE 7700 only is also possible.

Features

This is a spectrophotometric type color difference meter equipped with an optical fiber with a pen type measuring head.

Measurement is possible even for such samples with complicated shape or large size as skin, samples with surface roughness, precision parts, dental material, etc.

Using a foot switch included in the standard accessories, you can measure even if you have your both hands full with other job.
