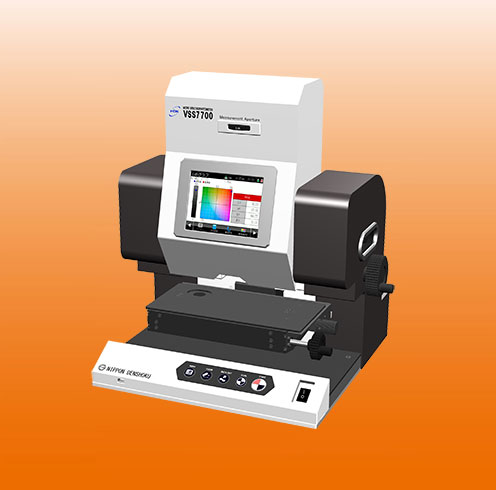

VSS 7700 is a high-precision spectrophotometric type color difference meter based on non-contact microscopic measuring method for such a small sample as Φ0.03mm at minimum. Spectral reflectance can be measured in the wavelength range of 380nm to 780nm at 5nm intervals. Adjustment of measuring position and focusing can be easily done by the CCD camera. This model will be an optimum choice for color and reflectance measurement of paint flakes, printed matter, fabrics, dental material, botanical specimens, plated metals, lead frames, etc.

Features

A measuring spot is magnified by the built-in microscope and minimum area up to Φ0.03mm is measurable.

Spectral reflectance can be measured in the wavelength range of 380nm to 780nm at 5nm intervals.

Large5.7”Color LCD has been adopted. You can enjoy easily viewable various graph and measuring value.

Loads the color CCD camera which focusing the correct measuring point with optional video monitor or your personal computer.

Adopts the 250mm×120mm Sample Stage which allows to measure large the sample.
